    Automatic railway accessories washing and drying line

    Release time:2020-9-17    Reading volume 98 second
    Reading guide:IntroductionDetailed parametersThe equipment has automatic loading and unloading and corner system&#

    I
    ntroduction
    Detailed parameters


    The equipment has automatic loading and unloading and corner system, ultrasonic cleaning system, automatic throwing, automatic overflow and oil separation device, spray system, automatic high-pressure water cutting system, and automatic drying system. The robot automatic conveying system adopts high-precision linear guide rails and high-precision position detection sensors, and the robot can accurately grasp and place the workpiece. The automatic feeding and discharging and automatic heating system completely realizes unmanned intervention and automatic operation, which greatly reduces the labor intensity of workers. The advanced mist treatment system can condense and return the mist generated during cleaning, and the air will be discharged after being filtered and adsorbed by activated carbon.
    The equipment is equipped with an advanced remote diagnosis system, which enables equipment manufacturers to remotely detect equipment failure points and quickly repair them. At the same time, it is also equipped with MS and PROFINET interfaces to facilitate interactive docking with other production lines.


    I
    ntroduction

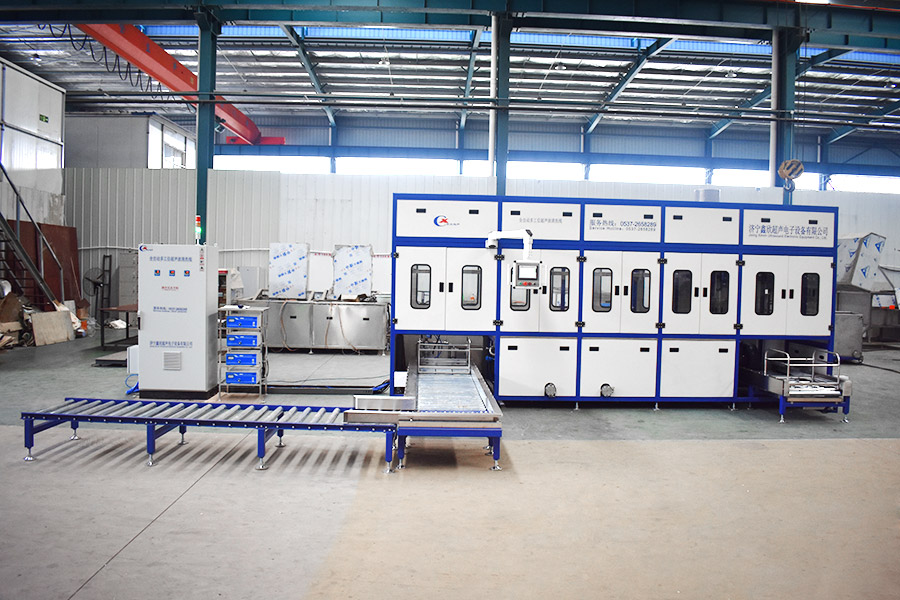

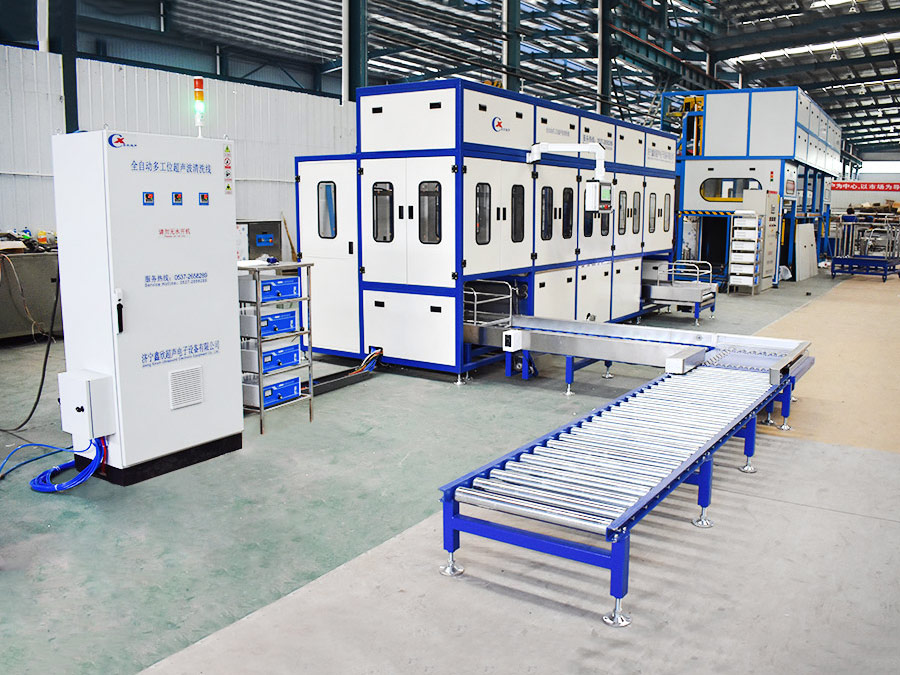

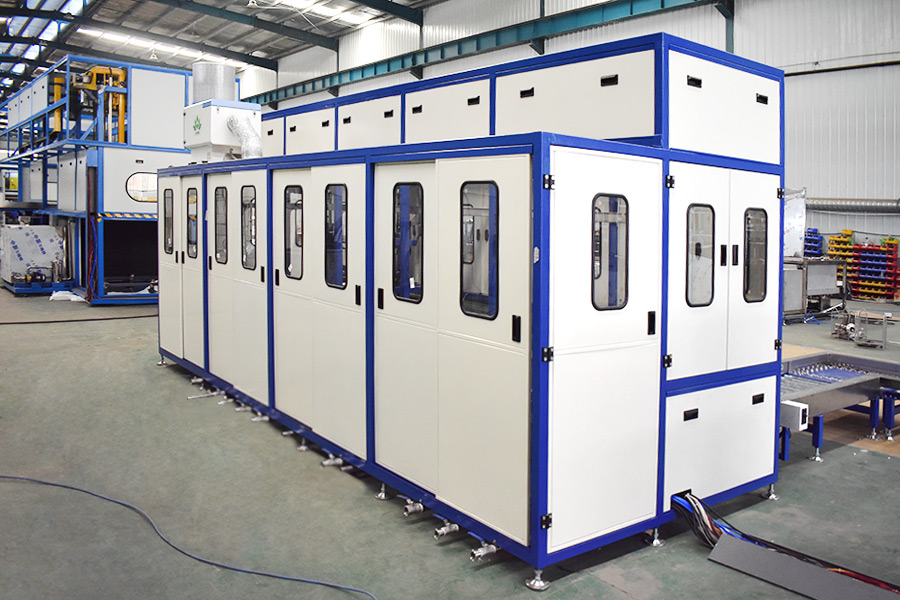

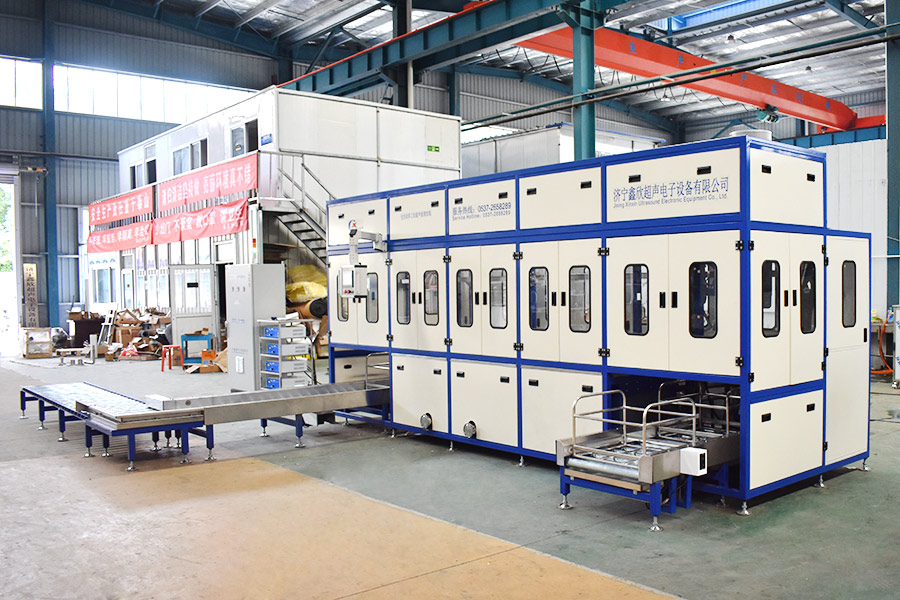

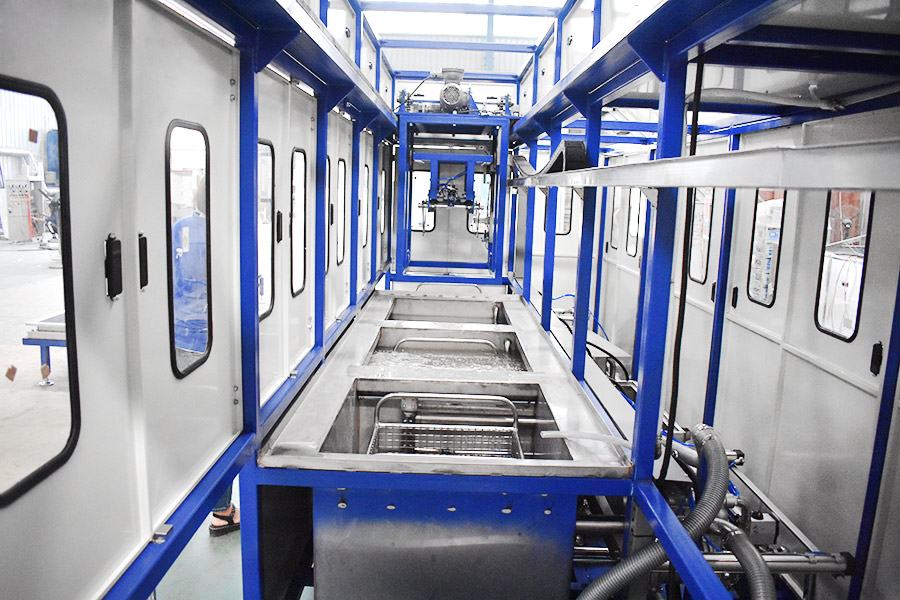

    Detailed display


    Automatic railway accessories washing and drying line
